KZL Series Revolving Granulator

Short Description:

Type: KGL100 – KGL300

State diameter (mm): 100mm – 300mm

State length (mm): 96mm – 305mm

Motor power (kw): 0.75kw – 5.5kw

Production capacity (kg / h): (20-150)kg/h – (200-2500)kg/h

Speed(rpm): (0-1400)rpm – (0-1400)rpm

Product Detail

Product Tags

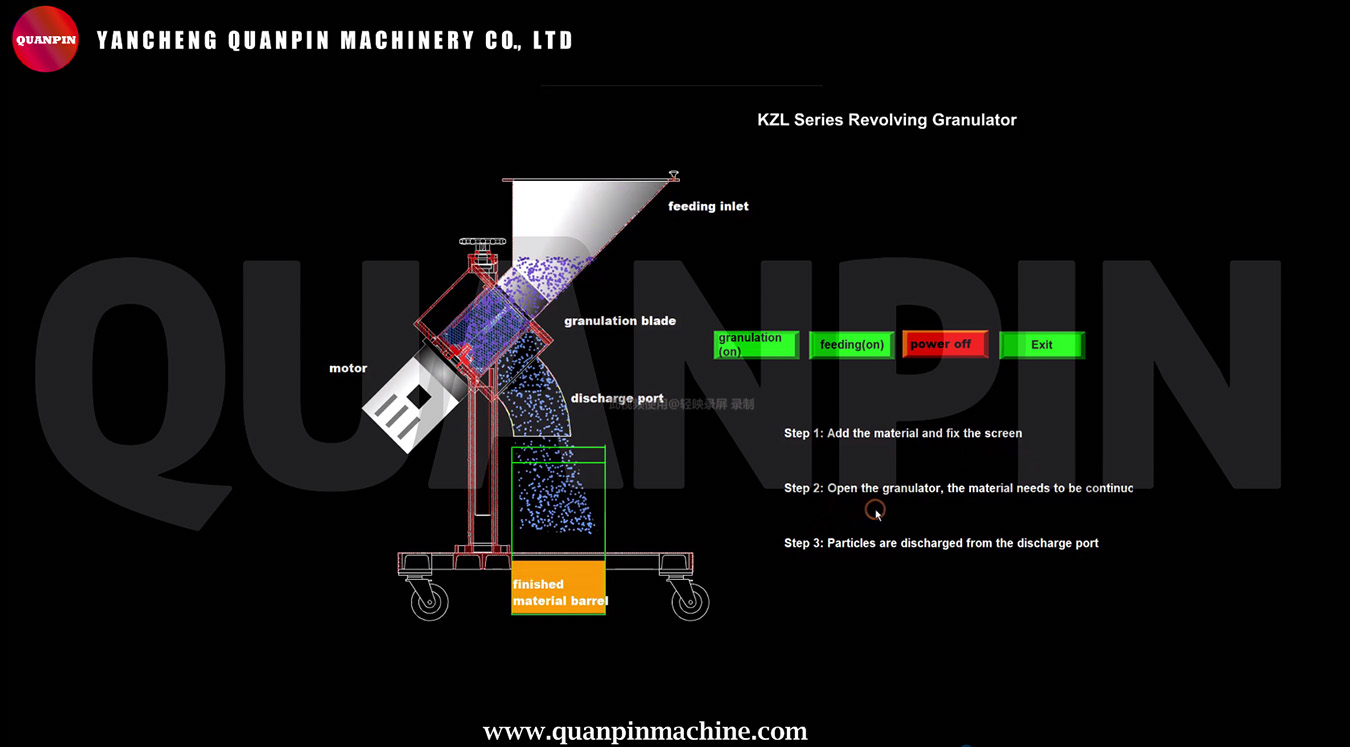

KZL Series Revolving Granulator

There is less heat and dust in work.
The fixed screen is made from stainless steel and it can not damage easy.
The gap between crush knives and screen can be adjusted.
It can treat adhesive, glue, hot and wet raw materials.



Technical Parameter

Type State diameter State length Productive capacity Power Speed
100 100 96 20-150 0.75 0-1400
200 200 179 100-1500 1.5 0-1400
300 300 305 200-2500 5.5 0-1400


This machine is suitable for crushing and processing granule of Chinesetraditional medicne. Western medicine, foodstuff, chemicals, pigments, feedstuff and so on.
The specifications and shapes of granule made by all kinds of granulating process and differentgranulator are different. Then granulate with basicsimilarshape and specification can be got when the granulated granule is cut by knives with high speed in this machine.
All parts in this machine are made of stainless steel. Its assembling and disassembling and cleaning are very convenient.
